Our Products

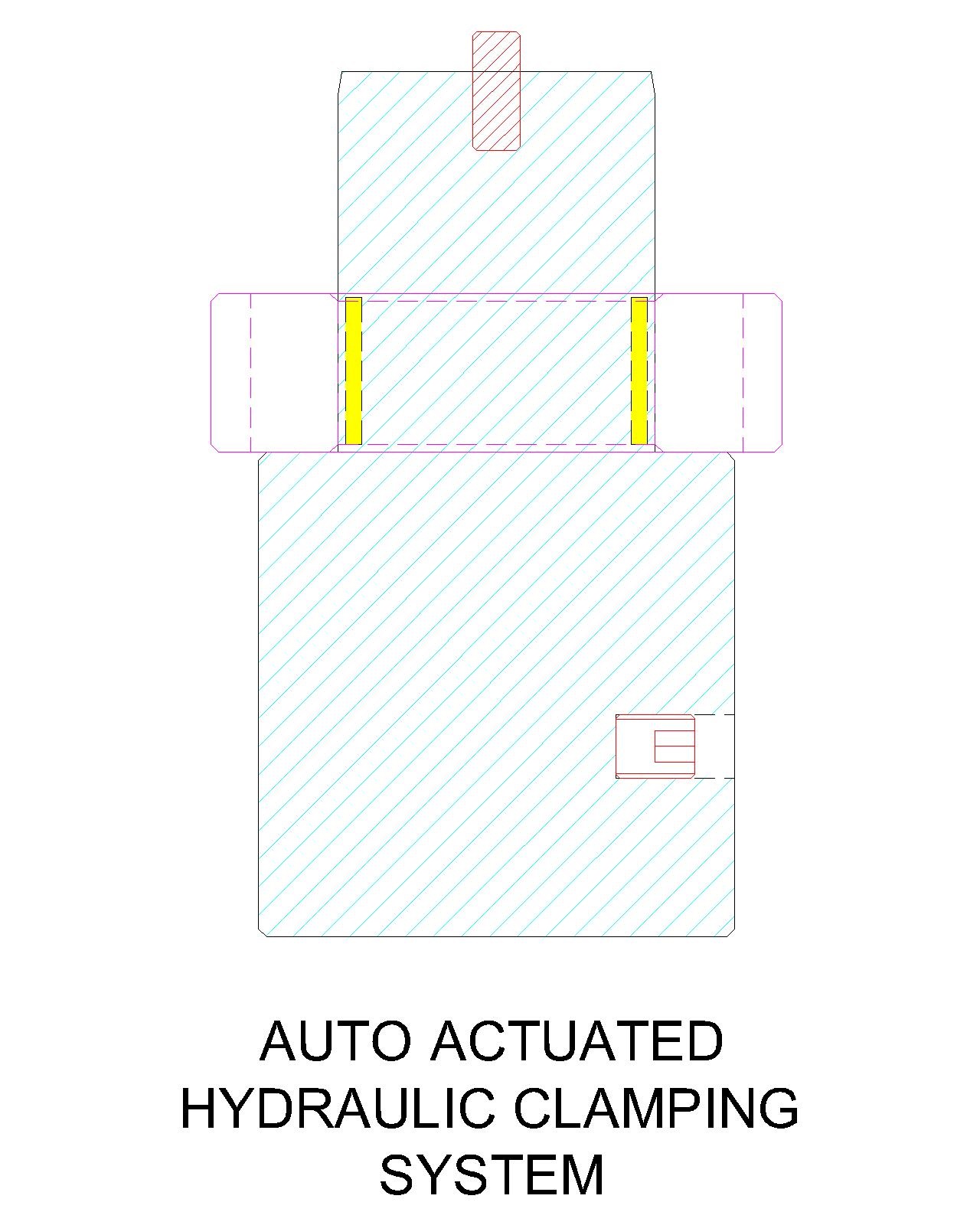

Hydraulic / Collet Type Clamping Systems

Description:

Shree Precision offers the hydraulic clamping system which can be hold in hydraulic clamping three jaw or four jaw chuck on CNC lathe machine and can clamp the component with no clearance with auto actuation by tail stock center. Also the pressure adjusting screw is provided to increase the clamping pressure of hydraulic expanding system, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

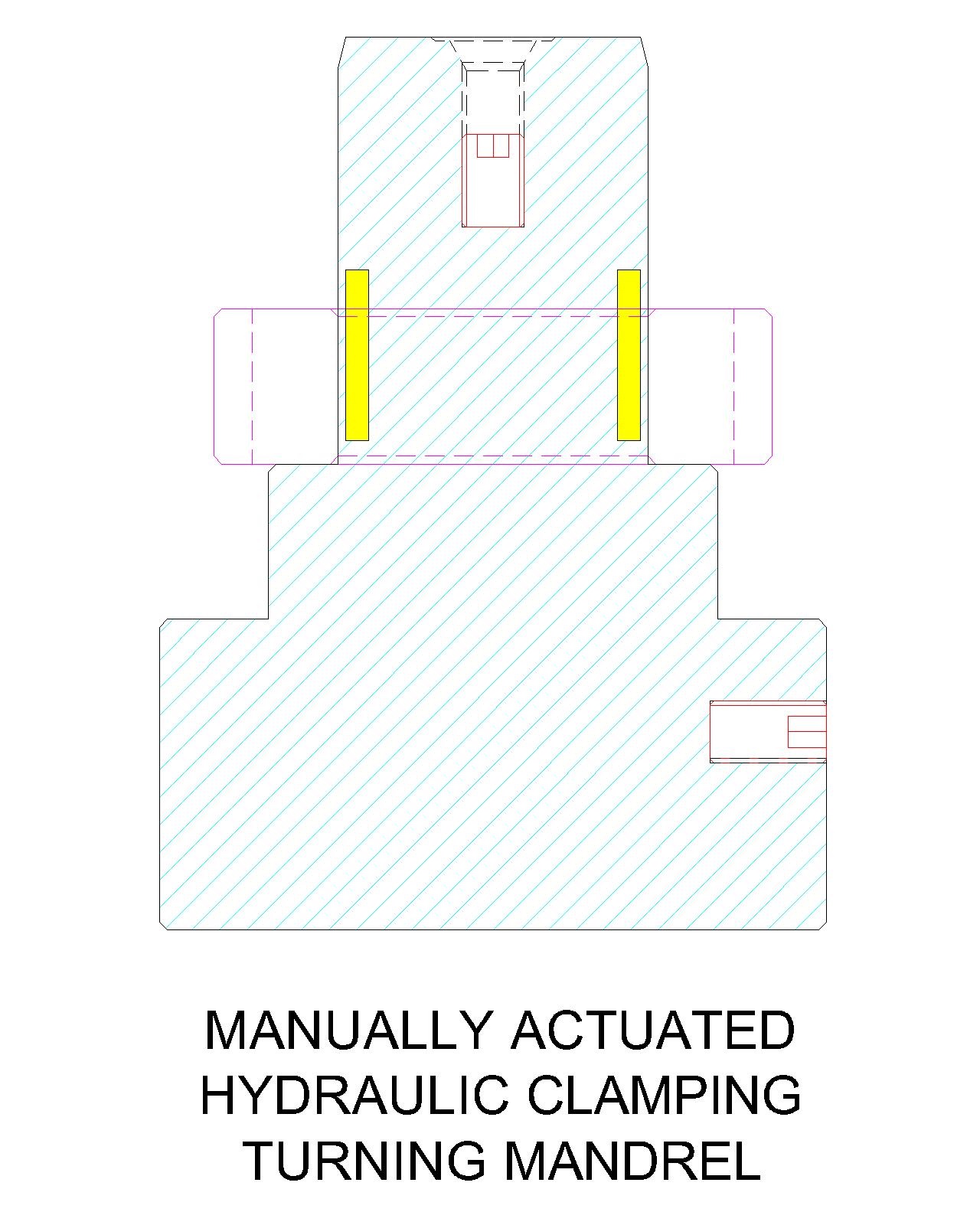

Hydraulic Turning Mandrels

Description:

Shree Precision offers the hydraulic clamping system which can be hold in hydraulic clamping three jaw or four jaw chuck on CNC lathe machine and can clamp the component with no clearance with manual actuation by actuating screw. Also the pressure adjusting screw is provided to increase the clamping pressure of hydraulic expanding system, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

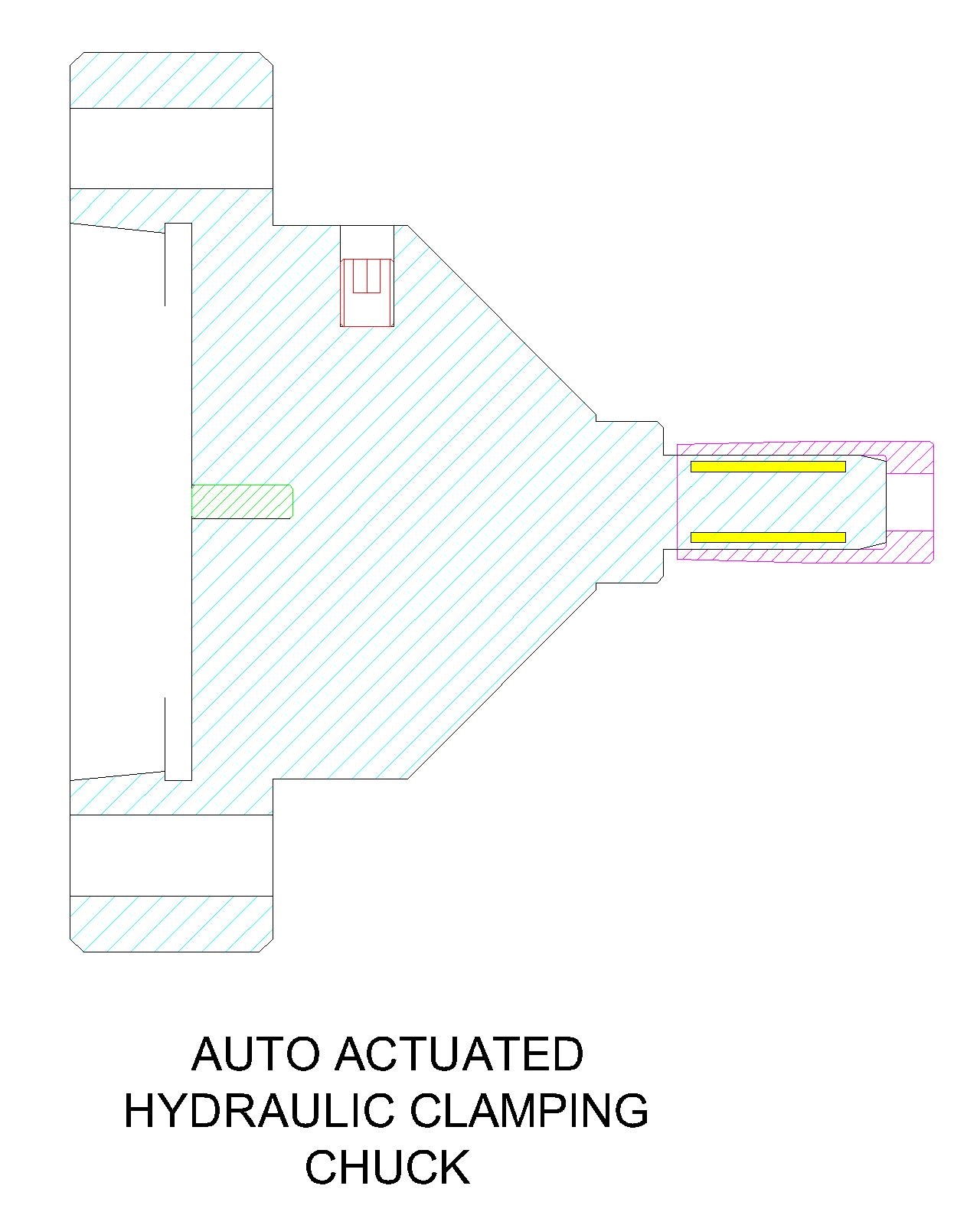

Hydraulic / Collet Type Chucks

Description:

Shree Precision offers Hydraulic expanding chuck or Collet expanding chuck which can be directly mounted on spindle nose taper of machine spindle and can actuated with the machine drawbar. Also the pressure adjusting screw is provided to increase the clamping pressure of hydraulic expanding Chucks, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

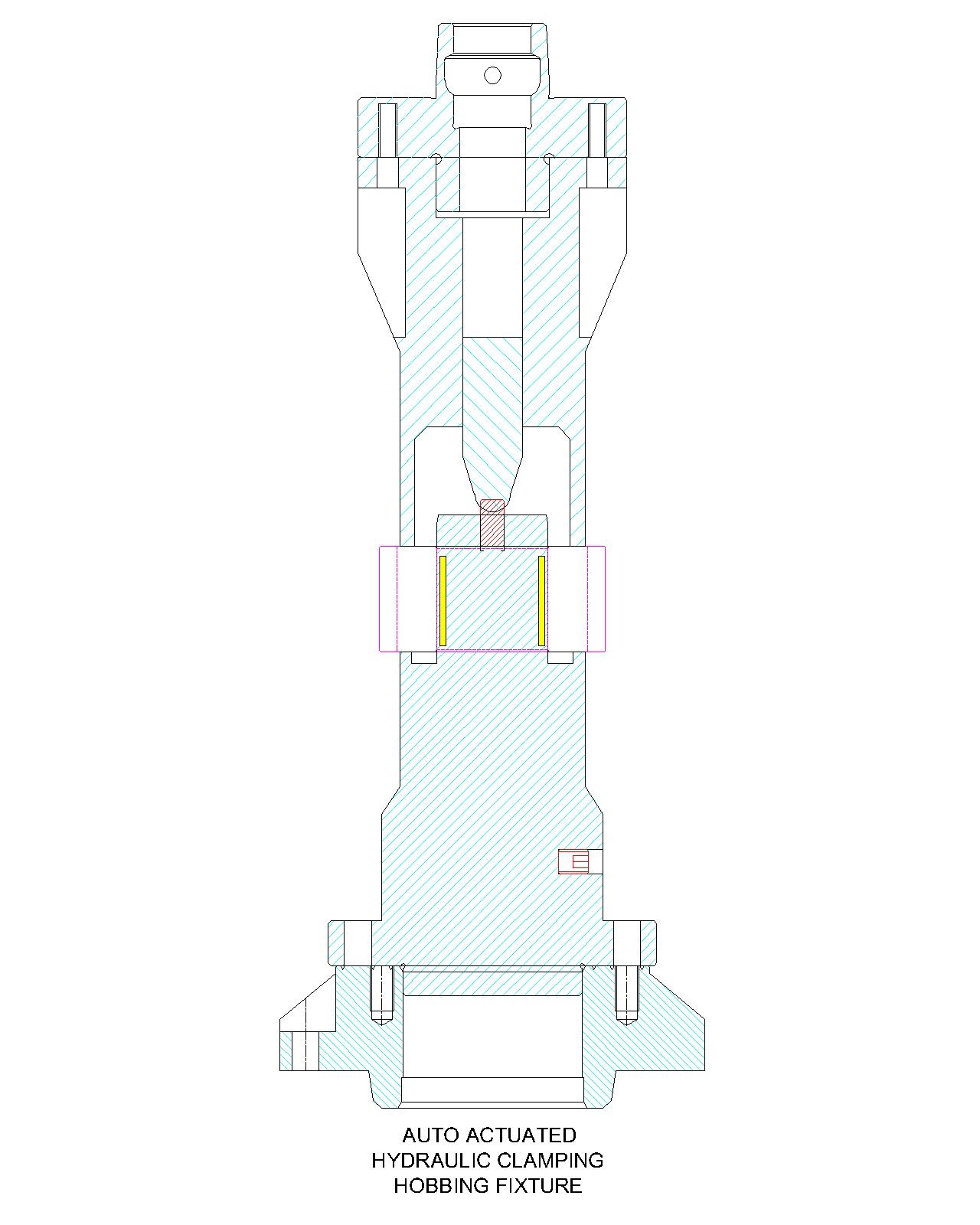

Hydraulic / Collet Type Gear Hobbing Fixtures

Description:

Shree Precision offers Hydraulic or Collet type expanding hobbing Fixtures which can directly mounted on machine base and can actuated with tail stock or drawbar. Also the pressure adjusting screw is provided to increase the clamping pressure of Hydraulic Expanding Hobbing Fixture, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

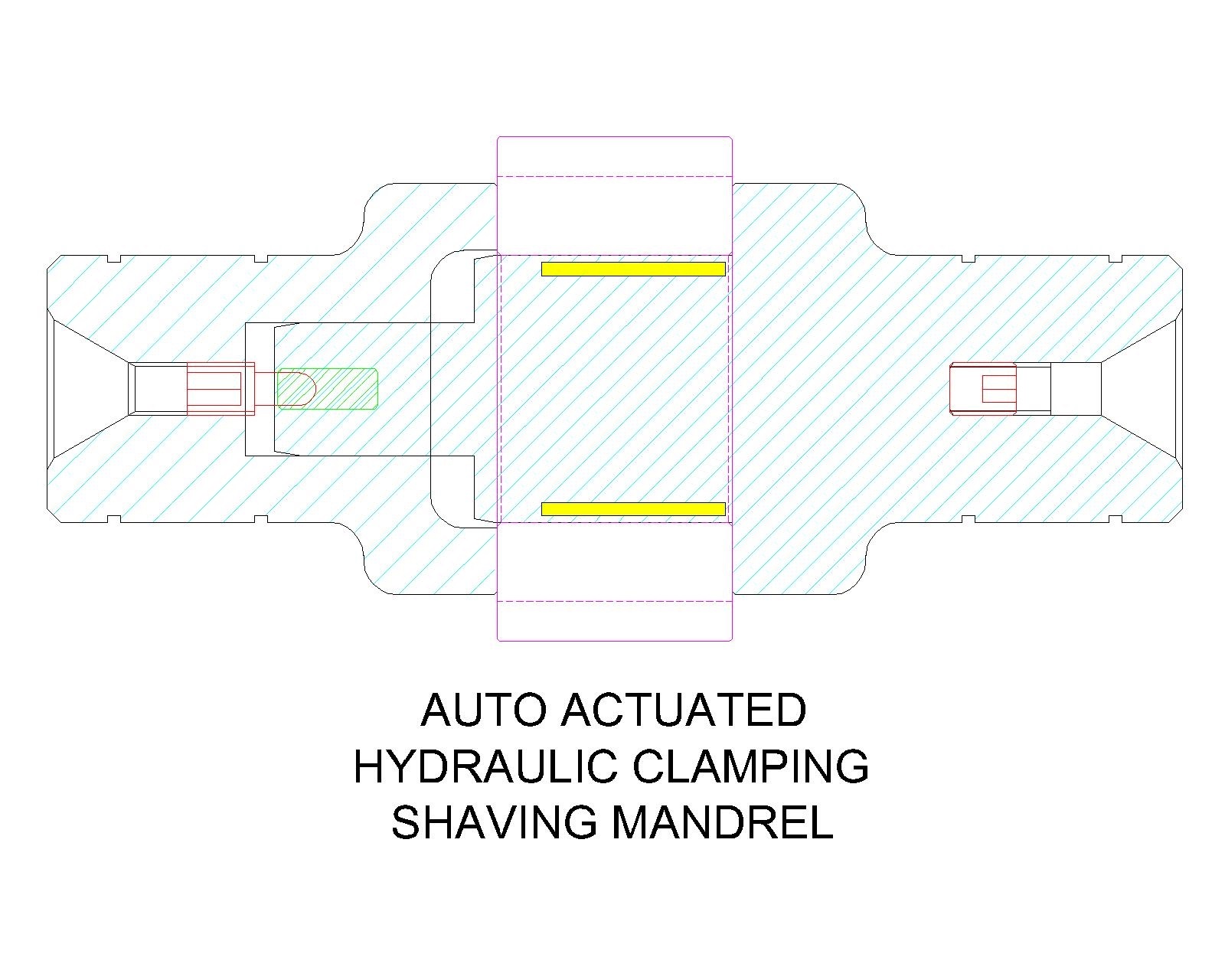

Hydraulic / Solid Type Gear Shaving Mandrels

Description:

Shree Precision offers Hydraulic expanding shaving mandrels which can be actuated by between Centre clamping of mandrel. Shree Precision offers Hydraulic expanding shaving mandrels which can be directly mounted on machine tail stock spindle and can actuated with machine spindle. Also the pressure adjusting screw is provided to increase the clamping pressure of Hydraulic Expanding Shaving Mandrel, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

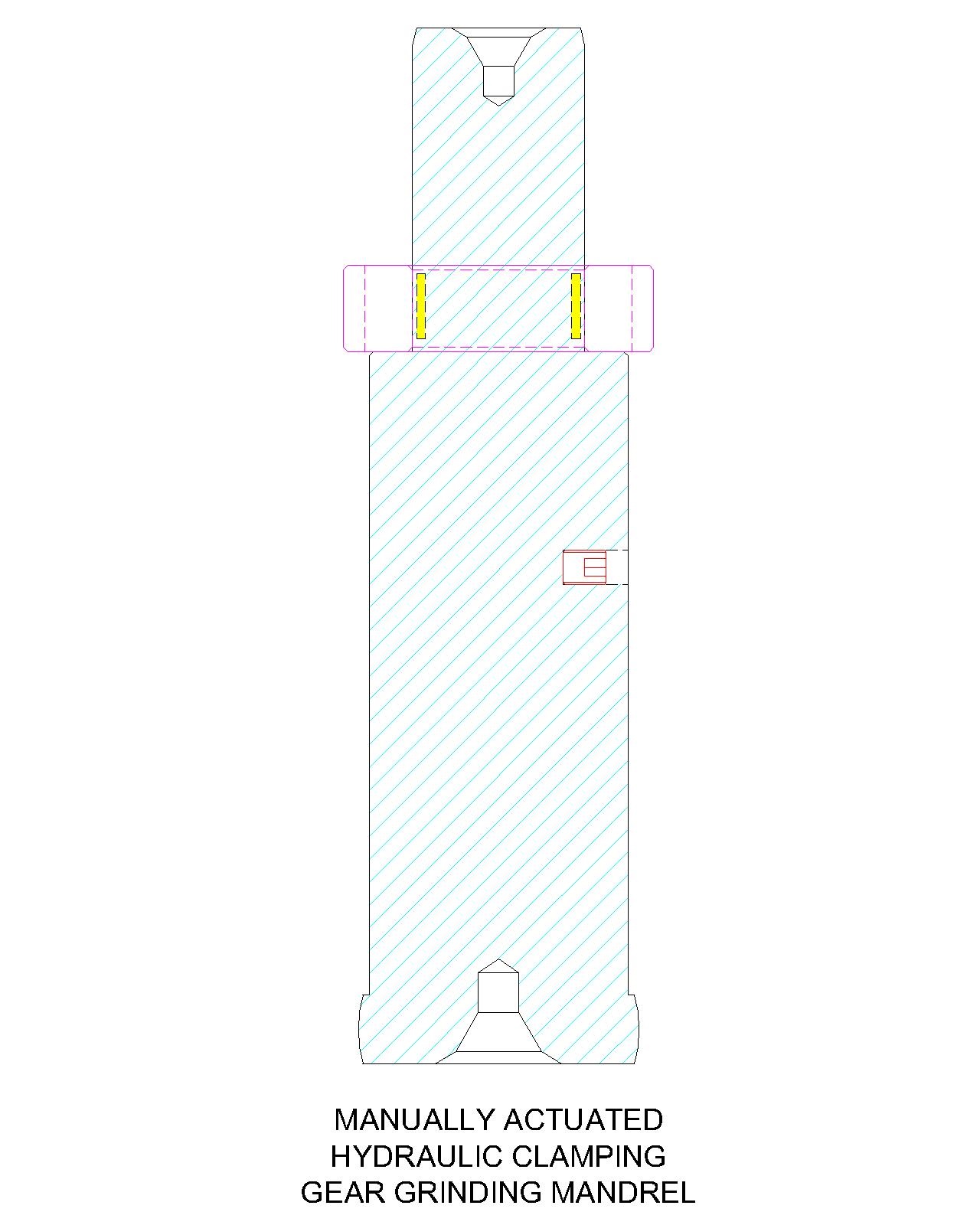

Hydraulic Gear Grinding Mandrels

Description:

Shree Precision offers Hydraulic Expanding Between centre Gear Grinding Mandrels which can be directly mounted on between centre collet clamping chuck. Also the pressure adjusting screw is provided to increase the clamping pressure of Hydraulic Expanding Gear Grinding Mandrel, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

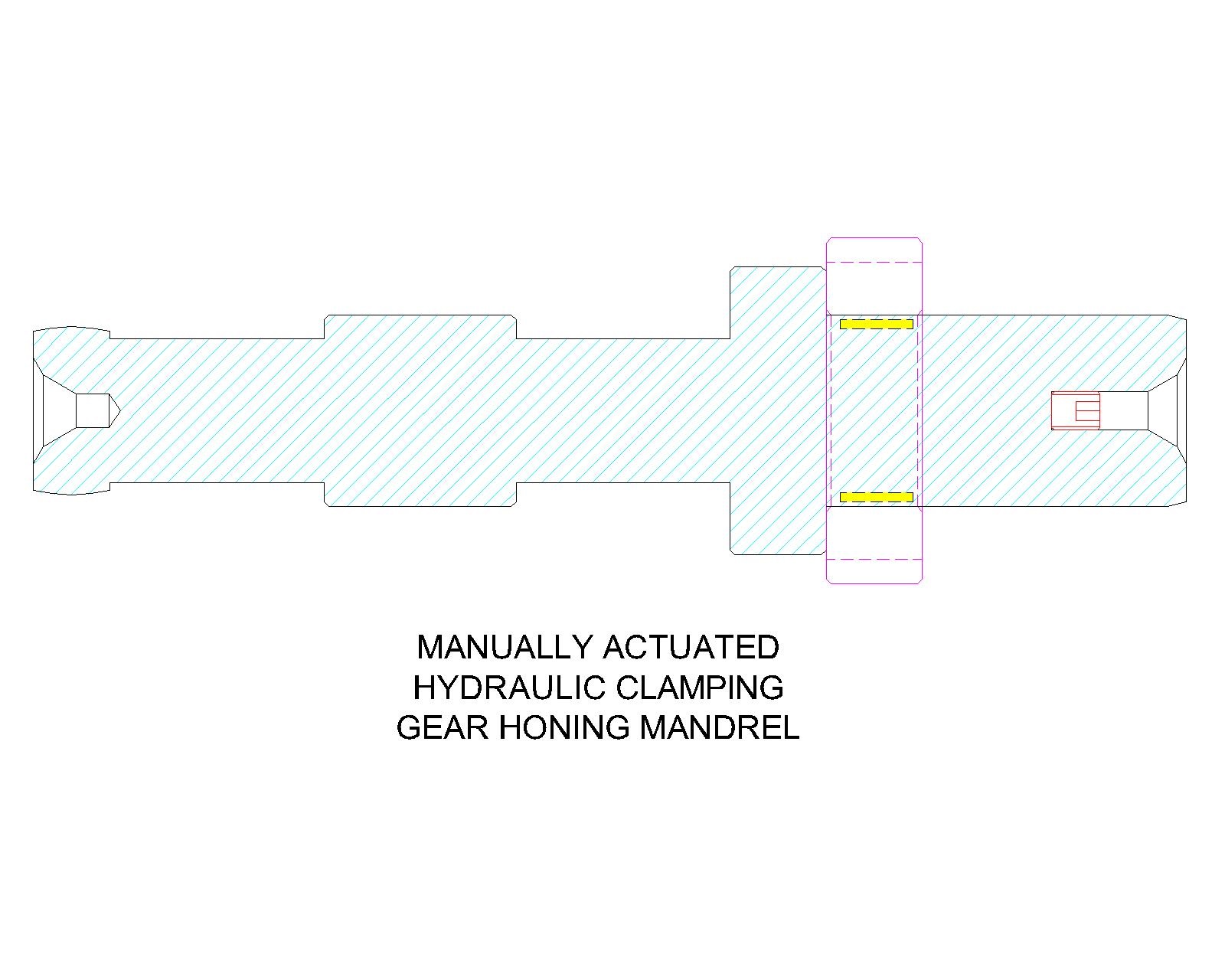

Hydraulic Gear Honing Mandrels

Description:

Shree Precision offers Hydraulic Expanding Gear Honing Mandrel which can mounted in between centre on machine and can be auto or manual actuated. Also the pressure adjusting screw is provided to increase the clamping pressure of Hydraulic Expanding Gear Honing Mandrel, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

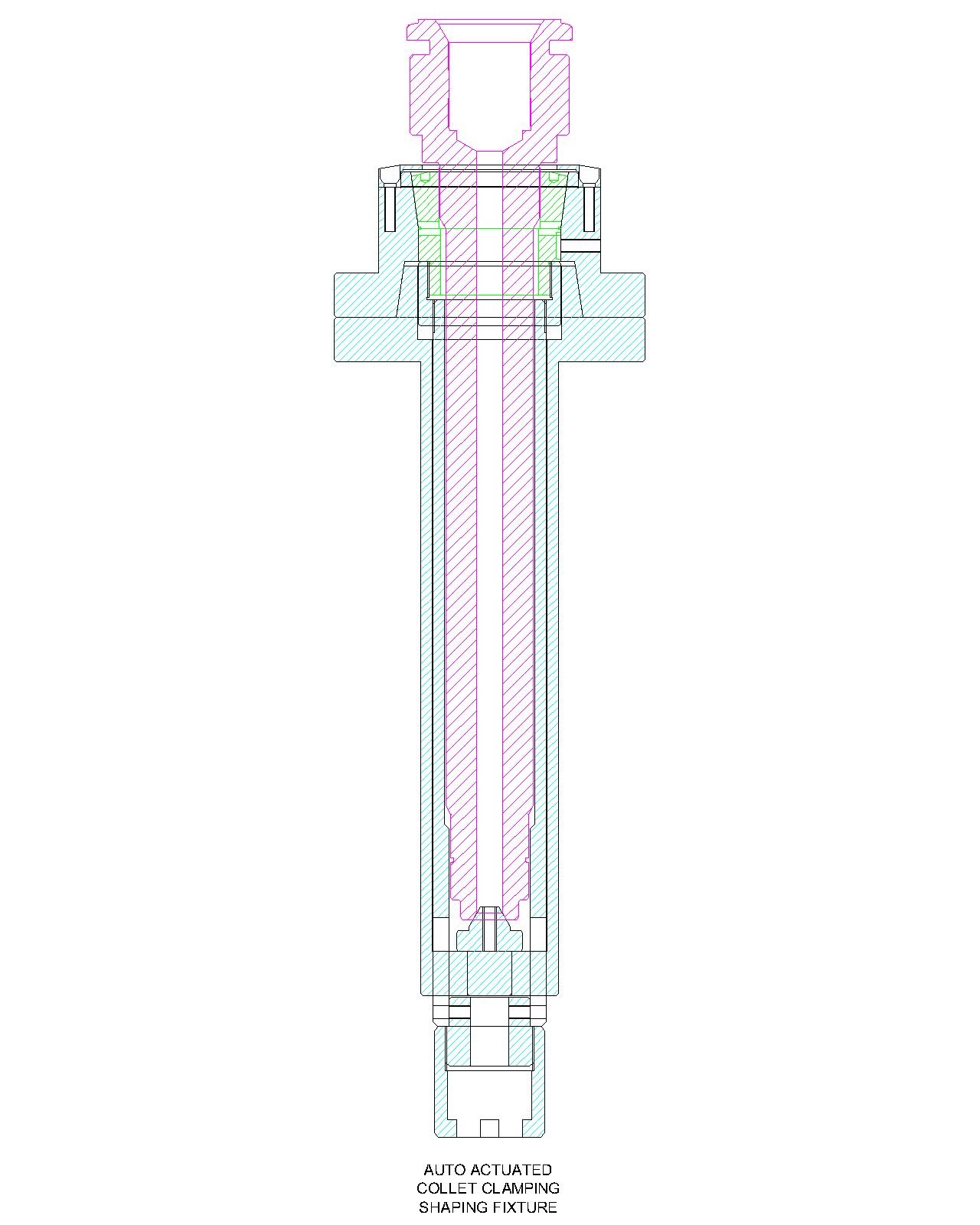

Hydraulic / Collet Type Gear Shaping Fixtures

Description:

Shree Precision offers Hydraulic or collet Type Clamping Gear Shaping Fixtures which can mounted on machine base and can actuated by machine drawbar or manual. Also the pressure adjusting screw is provided to increase the clamping pressure of Hydraulic Clamping Gear Shaping Fixture, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

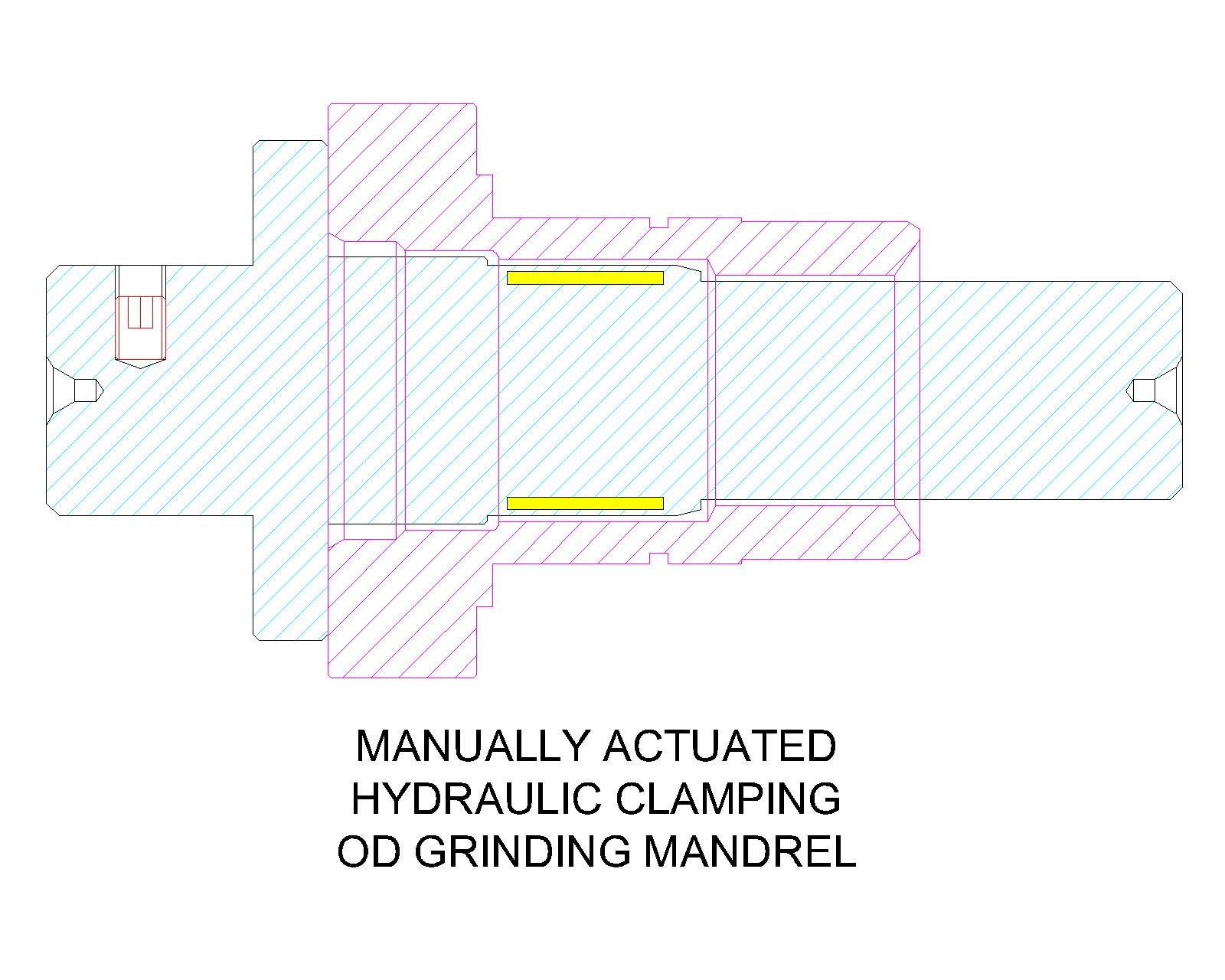

Hydraulic Clamping OD grinding Mandrels

Description:

Shree Precision offers Hydraulic Expanding OD Grinding Mandrels which is mounted in between centre on machine. And with manual actuation component is clamped. Also the pressure adjusting screw is provided to increase the clamping pressure of Hydraulic Expanding OD Grinding Mandrel, if required.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

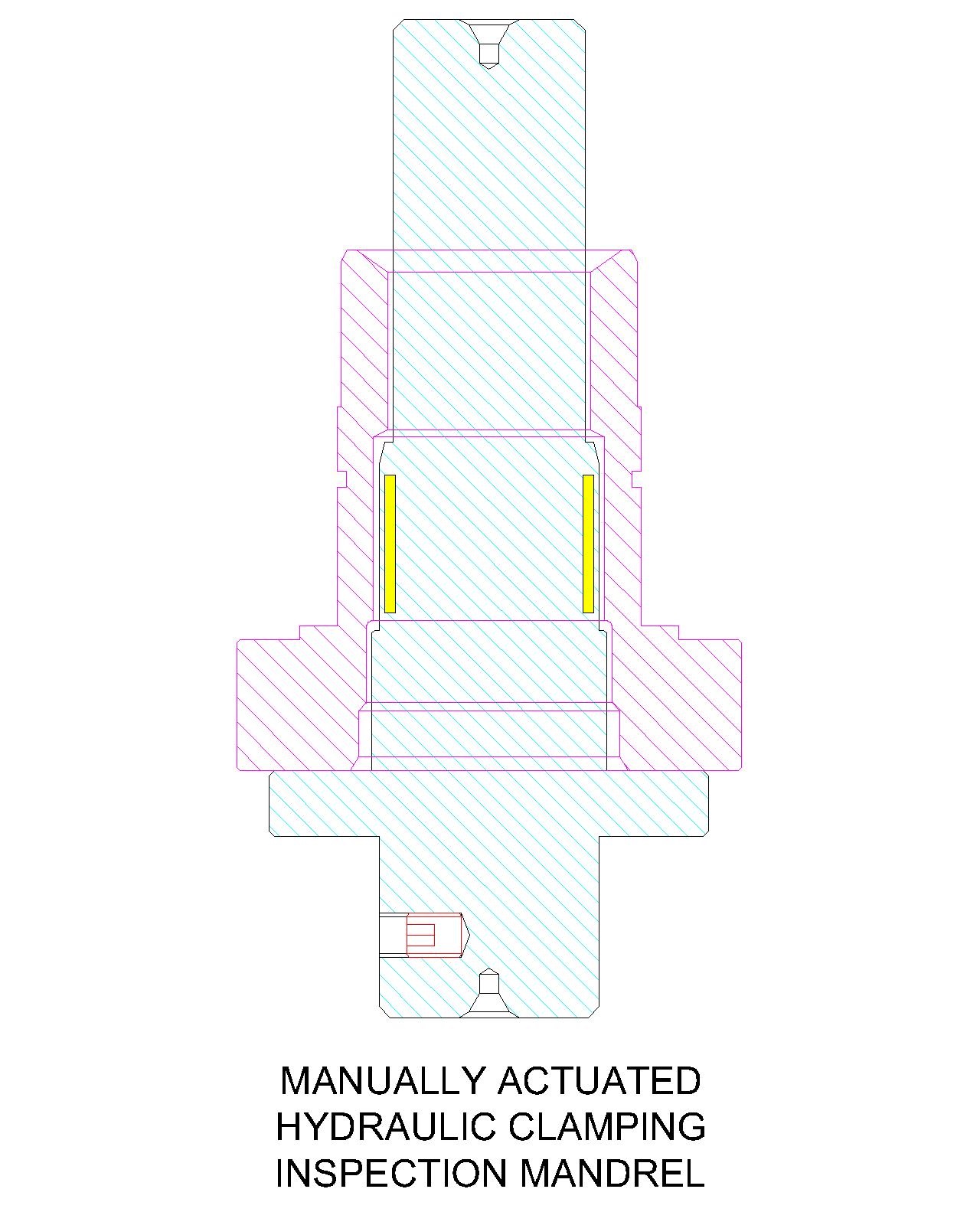

Hydraulic Clamping Inspection Mandrels

Description:

Shree Precision offers hydraulic Clamping Inspection Mandrels which can be check OD to ID Concentricity, ID to OD Concentricity, ID to PCD Run out of Gear, etc.

Concept Drawing:
Hydraulic / Collet Type Clamping Systems

We design and manufacture Hydraulic Expanding Systems

+
